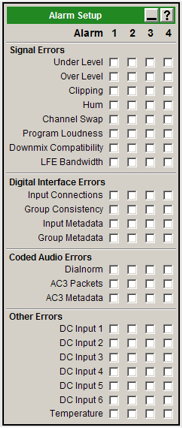

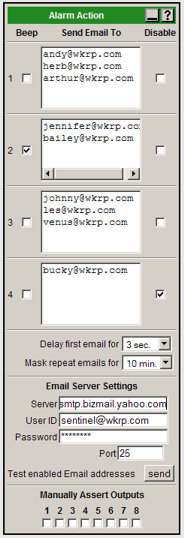

ALARMS – There are 8 alarms in the SENTINEL architecture (see right). Each of these can be independently defined by one or more error conditions. This enables notification of appropriate technical, program or management personnel for differing types of problems. For example, technical personnel may be notified when signal loss occurs and program personnel notified when compatibility or loudness issues occur. An Alarm can cause any combination of contact closure, audible or visual indication and generated emails. Up to four email addresses may be entered into the SENTINEL and each may receive notification of any combination of Alarms

Click on either of the panel images on the right for a larger version with detailled description of all functions and capabilities.
